Name | Stainless steel bar/rod |
Standards | ASTM / ASME,GB,DIN, JIS,T14975, etc |
Steel Grade | 200, 201B , 201H ,301, 303, TP304, TP304L/304L, 321 ,TP321, 316, TP316L, 316L, 316Ti, |
Out Diameter | 6mm to 2000mm or customized |
Wall Thickness | 0.5-220mm |
Length | 5.8m ,6m,or customized |
Tolerance | Out diameter : +/-0.15mm ,Thickness: +/-11% of wall thicknessLength: +/-4.5mm - 0mm |
Surface | Mirror Polish,Satin Polish,Without Polish,NO.1,NO.4 |
MOQ | 1 ton |
Supply ability | 3000 tons per month |
Packing | 3, bundles to be covered by polythene & strapped securely |
Payment terms | T/T or L/C,TT 30% in advance ,70% balance after received B/L copy |
Delivery terms | FOB CFR CIF EX Works DDU |
Delivery time | Within 5-20 days after received the deposit or as client's requirements |
Details |
Round bar | Diameter: 3mm~800mm |
Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm |
Square bar | Size: 4mm*4mm~100mm*100mm |
Flat bar | Thickness: 2mm~100mm |
Width: 10mm~500mm |
Hexagonal | Size: 2mm~100mm |
Container Info | 20ft GP: L5.8m * W2.13m * H2.18m , about 27 CBM, Loading Max.26 Tons |
40ft GP: L11.8m * W2.13m * H2.18m, about 54 CBM, Loading Max.26 Tons |
40ft HG: L11.8m * W2.13m * H2.72m, about 68 CBM, Loading Max.26 Tons |
Grades | Shape | Dimensions |
304L/4307 316L/4404 303/4305 17-4PH | Round | Diameter 6 – 230 mm Length 3 – 6 m |
Hex | Diameter 8 – 70 mm Length 3 – 6 m |
Square | Diameter 8 – 75 mm Length 3 – 6 m |
DIMENSIONS |
ROUND BAR |
Condition | Diameter (mm) | Diameter (in) | Tolerance |
Cold drawn | 6–65 | 1/4 – 2 1/2 | h9 |
Ground | 6–65 | 1/4 – 2 1/3 | h7, h8 |
Peeled or polished | 6–100 | 1/4 – 4 | h9 |
Peeled | 30–230 | 1 3/16 – 9 | k11*), k12, k13 |
Black | 30–230 | 2 3/16 – 9 | To meet EN 10060 |
*Peeled k11 dimension up to 170 mm / 6 ¾ inch. |
HEXACON BAR |
Condition | Diameter (mm) | Diameter (in) | Tolerance |
Cold drawn | 8–70 | 5/16 – 2 3/4 | h11 |
SQUARE BAR |
Condition | Diameter (mm) | Diameter (in) | Tolerance |
Cold drawn | 8–70 | 5/16 – 2 3/4 | h11 |
Hot rolled | 10–75 | 1/2 – 3 | – |

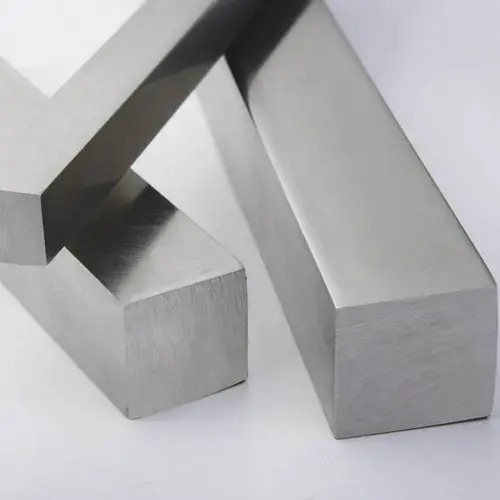

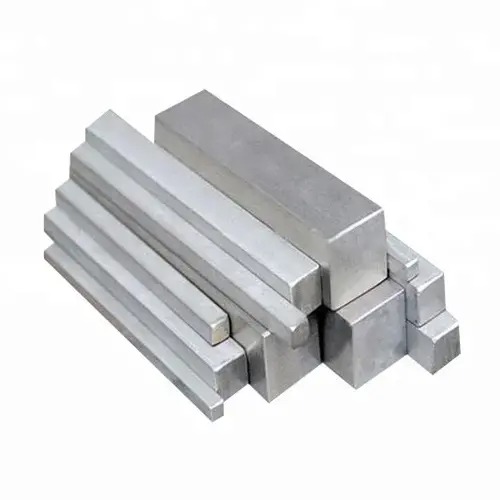

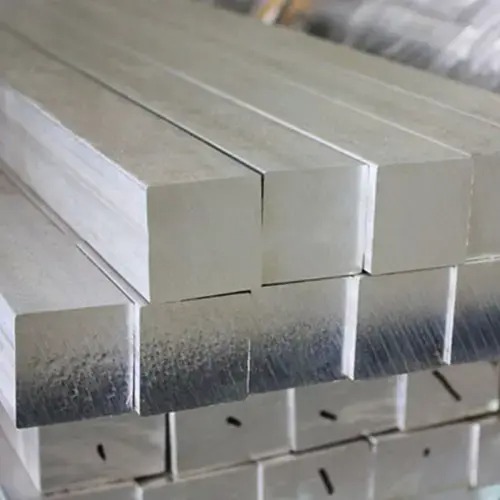

The Stainless Steel square bar is a product catalogued under the squares & flats category. The Stainless Steel square bar is equal sided in its width and height and can be customised to have rounded edges instead of the usual sharp edges as per requirement. Stainless Steel billets are heated up at high temperatures to allow them to be softened for the extrusion of required bar shape in a rolling mill. The heated billet passes through the rolling mill wherethe heated square billet is forged into square shaped Stainless Steel bars. The square bars formed in the rolling mill are then allowed to undergo the cooling process. Yila is the only metal procurement service and supplies hot rolled Stainless Steel square bars of various shapes along with standard sizes and lengths for different grades such as 304 and 316 in mill finish. Customisation of length as per your order requirements is available at Yila.
