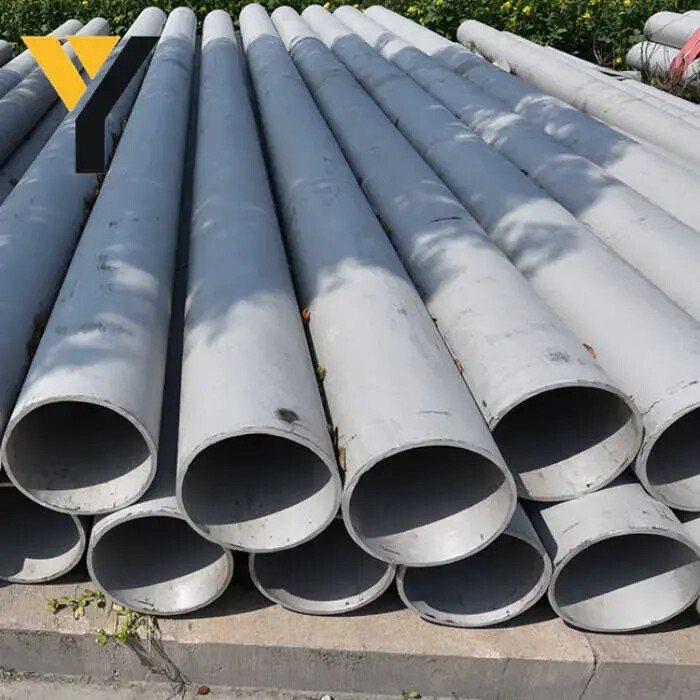

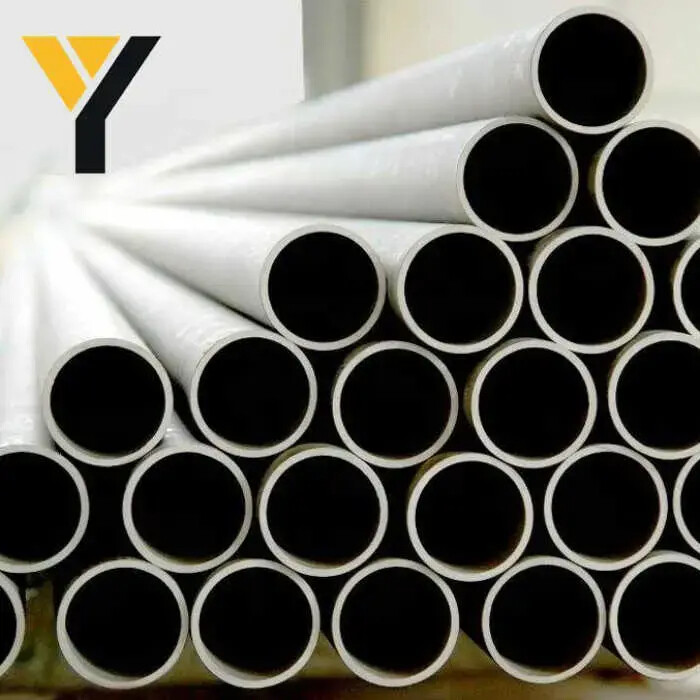

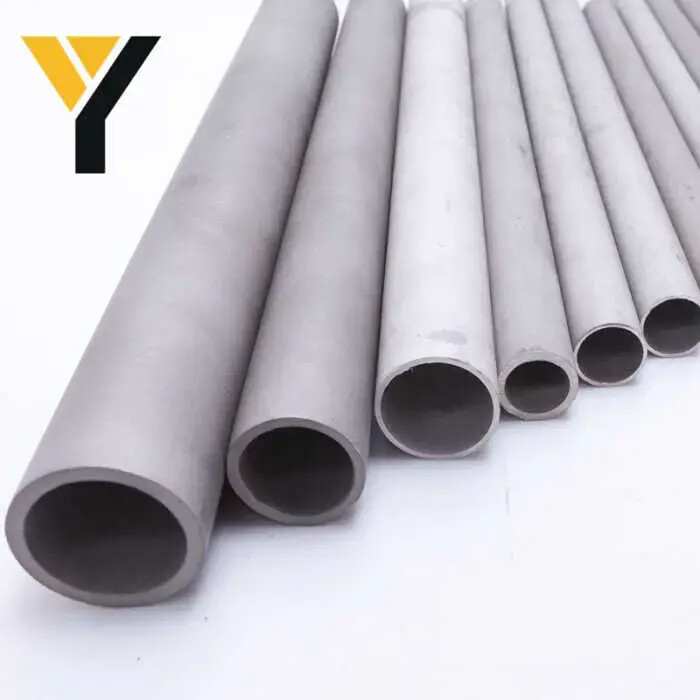

904L Stainless Steel Seamless Pipes
1. Item: Stainless Steel Tube / SS Pipe
2. Standard: ASTM, AISI, GB, JIS, as customers' request
3. Technique: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Get A Free Quote
Description

Stainless Steel 904L Pipes & Tubes, ASTM B677 TP 904L SS UNS N08904 Seamless & Welded Pipes & Tubes | SS 904L Seamless & Welded Pipes & Tubes Exporter, Stainless Steel 904L Seamless & Welded Pipes And Tubes | Stainless Steel 904L Seamless & Pipes And Tubes Manufacturer,1.4539 Pipes and Tubes



Specifications

GradesTP series - 201, 304, 304H, 304L, 304N, 304LN, 309, 310, 310S, 316, 316H, 316L, 316LN, 316Ti, 317, 317L, 321, 321H, 347, 347H, 904L. UNS series - S31803, S32750, S32760, NO8904.
SpecificationsASTM A249, A269, A270
Size1/8” NB to 24” NB, 1/4” OD to 24” OD sizes stainless steel welded tubes also available
Outer Diameter1/4" to 6" (6.35-165.2mm)
Wall Thickness0.4mm upto client requirement
LengthUp to 6 meters, custom cut lengths
TypeSeamless, Welded, Bright Annealed, Mechanically Polished, Electropolished, Semi Welded
FinishBA Finish inside and outside, Electropolished finish inside and outside



Specifications

StandardASTM B677, B366
ASME SB677, SB366
SizeSeamless Pipes - 15 NB - 400 NB
Welded Pipes -  150NB - 500NB
TypeSeamless / ERW / Welded/ Fabricated
FormRound
LengthSingle Random, Double Random & Cut Length.
EndPlain End, Beveled End, Threaded
ScheduleSCH 10 – SCH XXS
ApplicationWiring in electrostatic precipitators, Oil refinery components, Seawater cooling devices, Gas scrubbing plants, Pulp and paper processing industries, Acetic, phosphoric and sulphuric acid processing plants.


Chemical Composition

CCrCuMnMoNiPS
Max

Max

MaxMax
0.0219.0-23.02.04.0-5.023.0-28.00.0450.0351.0


Mechanical Properties

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B)Brinell (HB)
904L4902203670-90 typical150


Physical Properties

GradeDensity
(kg/m3)
Elastic Modulus
(GPa)
Mean Co-eff of Thermal Expansion (µm/m/°C)Thermal Conductivity
(W/m.K)
Specific Heat 0-100°C
(J/kg.K)
Elec Resistivity
(nΩ.m)
0-100°C0-315°C0-538°CAt 20°CAt 500°C
904L790019015--11.5-500952


Stainless Steel 904L pipes and tubes are available in both seamless and welded form in OD and NB sizes. In addition to standard sizes,

which are available in stock, our specialty is to manufacture and supply custom size SS 904L cold drawn seamless tubes from our factory.


Alloy 904L is the higher carbon variant of the alloy, enabling enhanced creep resistance and for higher strength at temperatures above 537°C. Grade 347 is similar to grade 321, but with slightly improved corrosion resistance in strongly oxidizing environments. Stainless steel 904L is essentially non-magnetic in the annealed condition and can only be hardened by cold working. SS 904L seamless pipes are popularly used in petroleum refineries, aircraft engine components, power generation, heat exchangers, pressure vessels, welded fabrications and other high heat applications.

We also offer SS 904L Pipes in different sizes, thickness and standards as per made to order requirements given by our customers. Stainless Steel Cold Drawn 904L Pipes is molybdenum demeanour austenitic stainless steel which is comparatively similar to SS 904L, but in the company of higher molybdenum substance.
